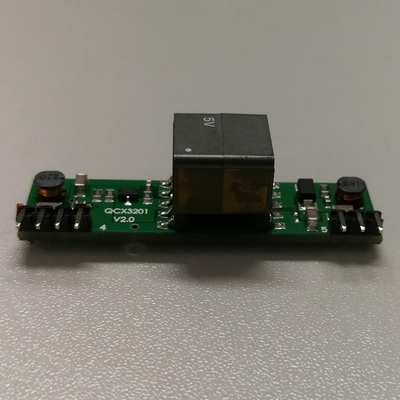

QCX3201 PD series is compliant to IEEE 802.3af power over Ethernet interface module of electric device. Single module integrated Ethernet powered by electric device for detection, classification and DC / DC conversion circuit, only need little external parts can be architecture out conforms to IEEE 802.3af power receiving device. At the same time, it can greatly reduce system volume, to save development time and reduce the cost.

QCX3201 Features:

* 802.3af IEEE specification

* low output noise and ripple, full load output 220uF capacitor only 30mVp-p

* input voltage range 36V to 57V

* Overload, thermal and short-circuit protection

* 1500V isolation (input to output)

* 87% High efficiency DC/DC converter

* various output options 3.3V/2.4A, 5V/2A, 12V/1A

* ultra small size, high integration, package SIL-51mm (L)* 13mm(W) * 17mm(H)

Application domain:

* IP Phone

* WLAN AP

* IP Camera

* various Ethernet related products
